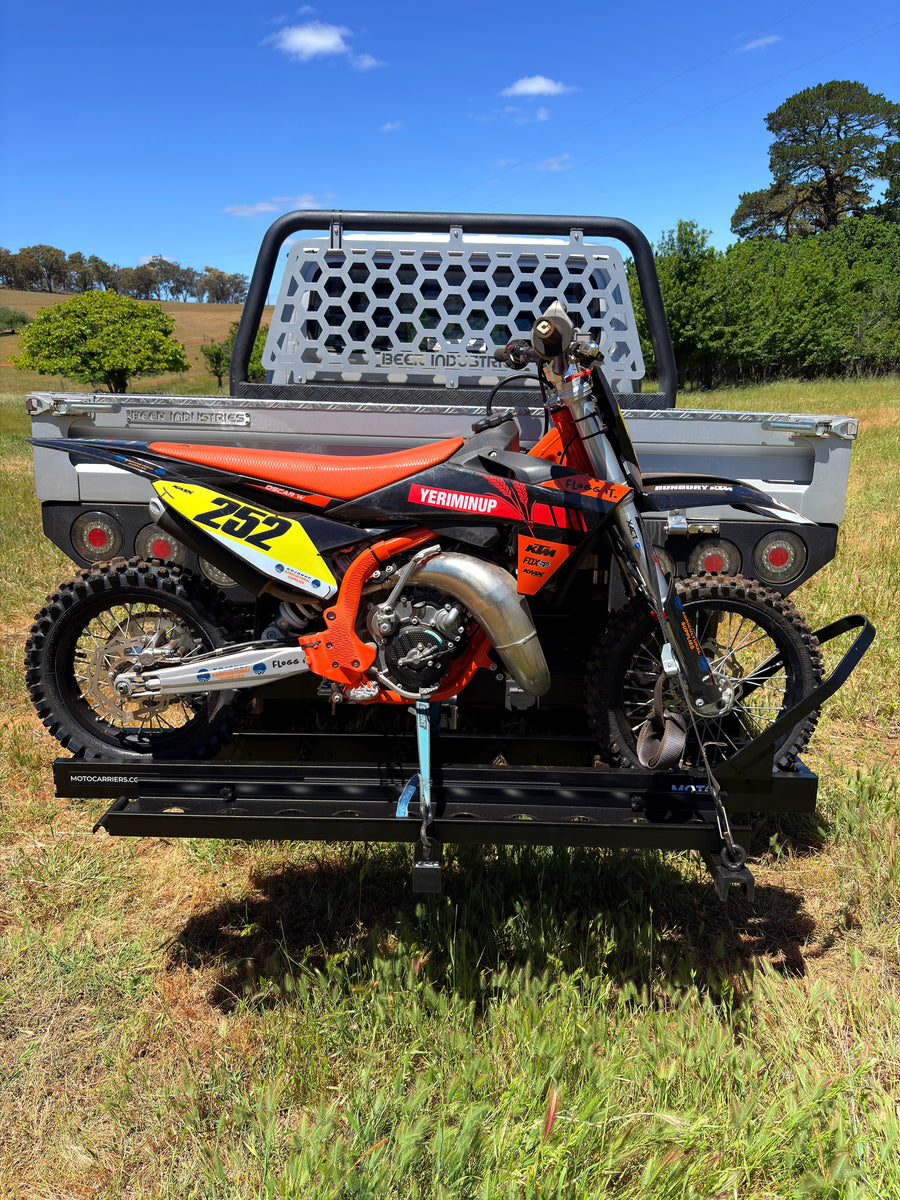

Pitbike Hitch Carrier
Coating: Black Powdercoat
- 1 Year Warranty – we've never had one back
- FREE shipping Australia-wide
- 180kg load capacity
- Standard 50mm hitch, fits most Aussie utes and 4WDs
- Stability bracket: carrier stays level when loaded
- Aluminium deck and ramp, steel shank and subframe
- Wheel chock included
- Fits Surron, Talaria and e-motos: at 60 to 70kg they use under half the rating
Delivery estimates
- Perth metro
- Next business day
- WA (regional)
- 1 to 4 business days
- SA
- 2 to 4 business days
- VIC
- 2 to 5 business days
- NSW
- 3 to 5 business days
- QLD
- 3 to 5 business days
- NT
- 3 to 7 business days
- TAS
- 4 to 5 business days
What's in the box

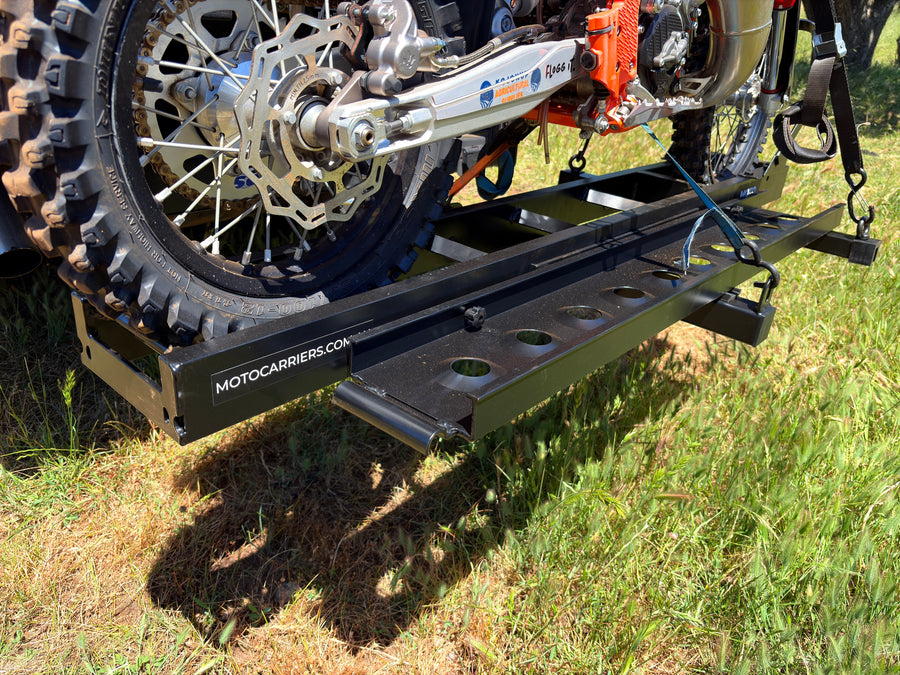

Carrier platform
One-piece TIG-welded aluminium platform.

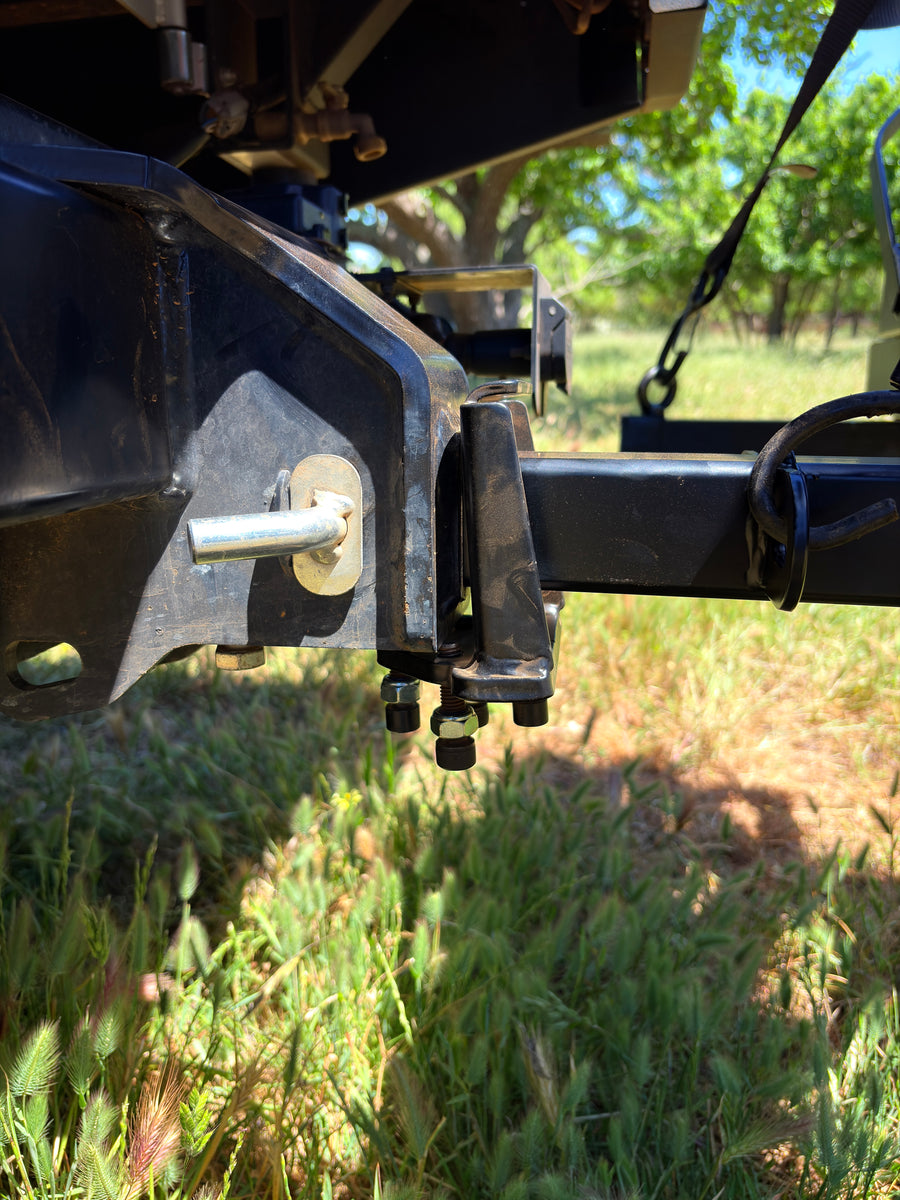

50mm shank assembly
Steel. Slides into a standard 50mm hitch receiver.
Stability bracket
Keeps the carrier level and rattle-free when loaded.

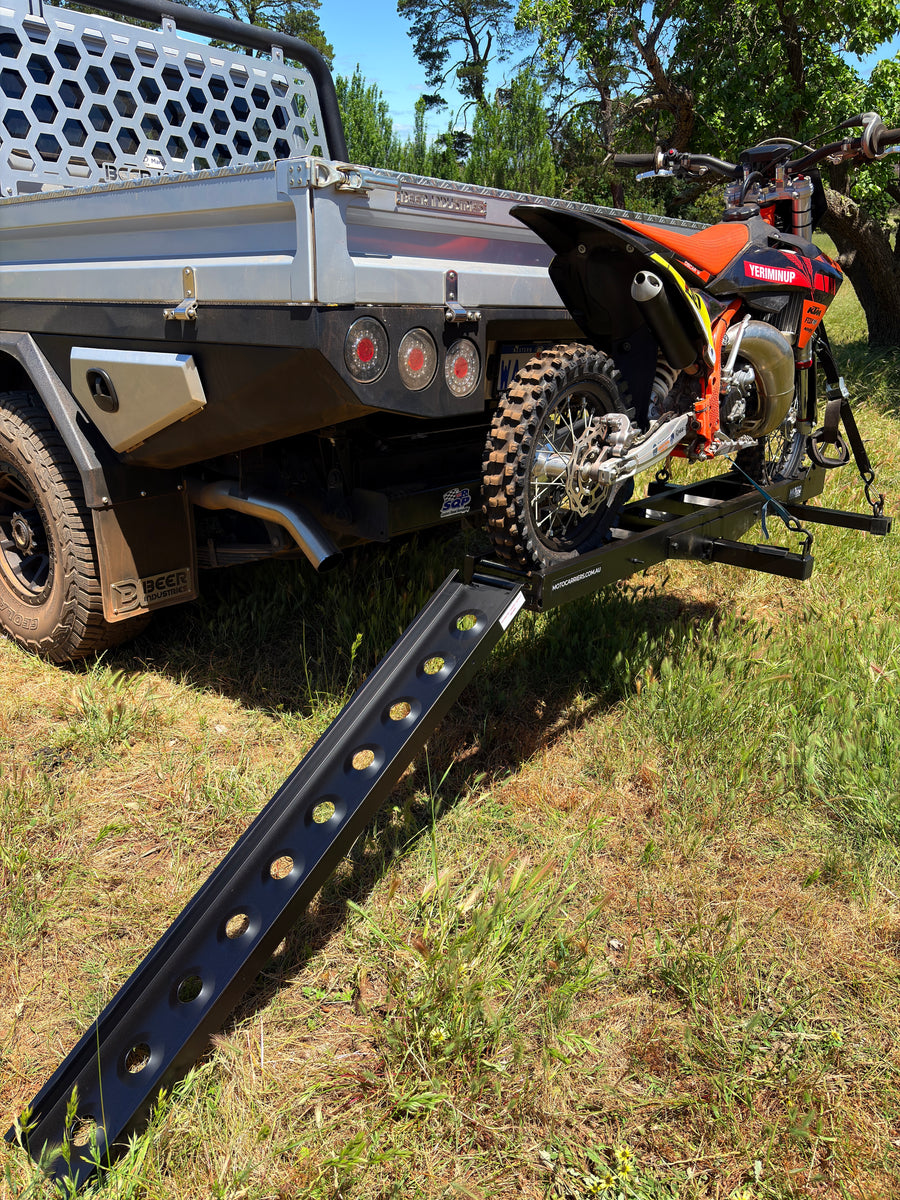

Loading ramp
Aluminium. Roll your bike up onto the platform.

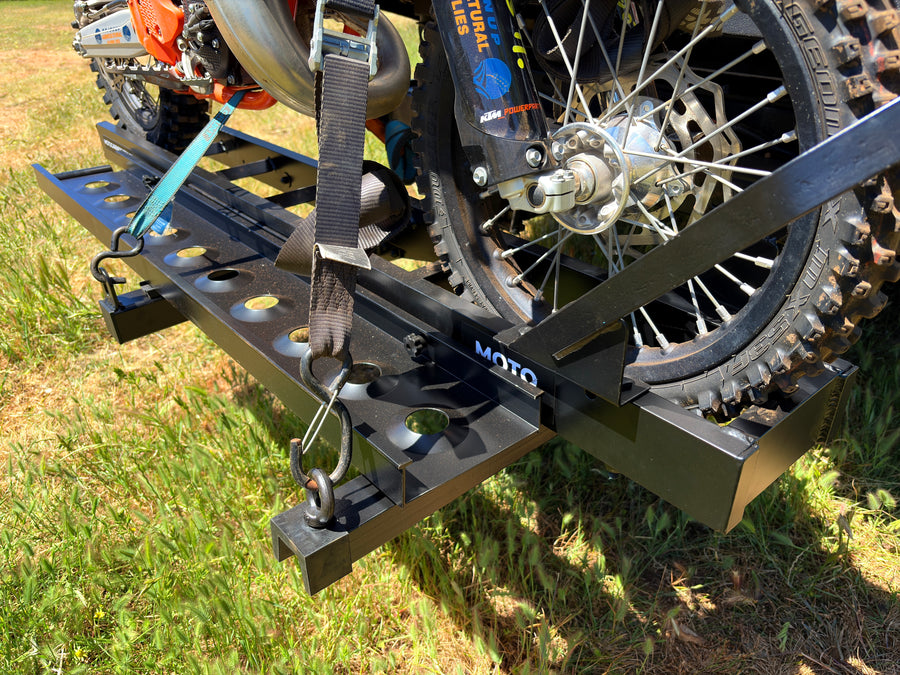

Front wheel chock
Steel. Holds the front wheel upright. No extra stands needed.
Hitch pin and clip
Locks the shank into the receiver.
Eyelet bolts
Bolt onto the front bar as tie-down points.
Mounting hardware and Allen key
All the hardware you need to fit it.
Will it fit your vehicle?
Three ways to check, plus our personal fitment guarantee.
What to look for
You need a standard 50mm × 50mm square receiver on your tow bar. Most utes, 4WDs and SUVs sold in Australia come with one. It looks like this:
The square opening in your tow bar: that's the receiver. If it's 50mm × 50mm, you're good. Check the rating plate on your tow bar if unsure.
Weight rating calculator
Enter your tow bar's vertical load rating (on the metal plate bolted to the bar). Most Class 4 ute/4WD bars are rated 250 to 350kg vertical.
| Carrier tare weight | 25 kg |
| Your bike weight | ~110 kg (e.g. Yamaha YZ250F) |
| Total load | 135 kg |
| Your margin | 165 kg |
✓ Plenty of margin. Your tow bar can handle it.
Assumes a typical 110kg motorcycle. Adjust for heavier bikes (ADV, big cruisers can be 200 to 270kg).
Confirmed vehicles
Tested and confirmed working on:
- Toyota HiLux
- Ford Ranger
- Mitsubishi Triton
- Isuzu D-MAX
- Holden Colorado
- Nissan Navara
- VW Amarok
- Mazda BT-50
- Toyota Prado
- Nissan Patrol
- Mitsubishi Pajero
- Ford Everest
- LandCruiser 70/200/300
Plus most other utes, 4WDs, and SUVs with a standard 50mm hitch. This list grows as customers confirm fitment.
Still not sure?
Send us a photo of your tow bar plate. We'll confirm fitment within 24 hours before you order. We look at the receiver size and your rating. No guessing.
If we confirm it fits and it doesn't, we'll make it right.
Full specifications
Everything you need to know before you order.
| Load capacity | 180 kg |
| Carrier tare weight | 25 kg |
| Platform length | 1.9 m |
| Platform width | 580 mm |
| Shank size | 50 mm × 50 mm |
| Hitch compatibility | Standard 50mm square receiver |
| Stability bracket | Yes, stays level |
| Aluminium parts | Deck (platform) and loading ramp |
| Steel parts | Shank, wings, side subframe, front wheel chock, front tie-down |
| Finish options | Raw Aluminium: silver aluminium, black steel. Black Powdercoat: all black, deck and ramp still aluminium |
| Wheel chock | Included |
| ADR compliance | ADR-suitable for Australian roads |
| Warranty | 1 year (parts and workmanship) |
Dimensions are approximate ± 10mm. Carrier is rated to 180kg gross: this is the combined weight of the bike, gear, and any accessories on the carrier platform. Always check your vehicle's tow bar vertical load rating before use.
